FEATURES & BENEFITS
• Frame material : Aluminium Alloy
• Surface Treatment :Anodized
• Glass Material : Acrylic
• Handle Material : Nylon
STANDARD PUMP CONFIGURATIONS
Model | Frame Size | Cut-out Size | Height | Deck Thickness | Color |
SFDH2-485-02 | ∅19"(485mm) | ∅16.5"(420mm) | 1.8"(42.5mm) | 0.6"(15mm) | Black |
SFDH2-545-02 | ∅21.4"(545mm) | ∅18.9"(480mm) | 1.8"(42.5mm) | 0.6"(15mm) | Black |
SFDH2-587-02 | ∅23.1"(587mm) | ∅20.5"(522mm) | 1.8"(42.5mm) | 0.6"(15mm) | Black |
DIMENSIONS

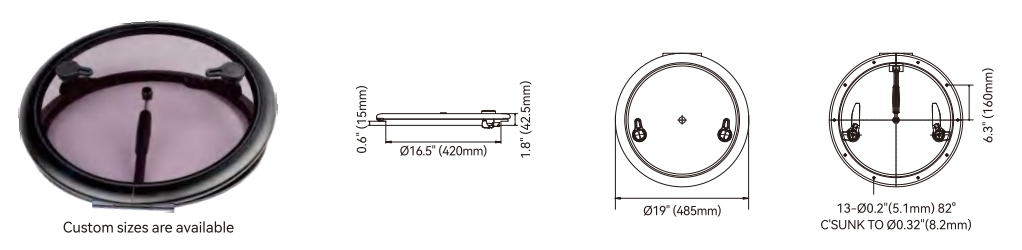

SFDH2-485-02

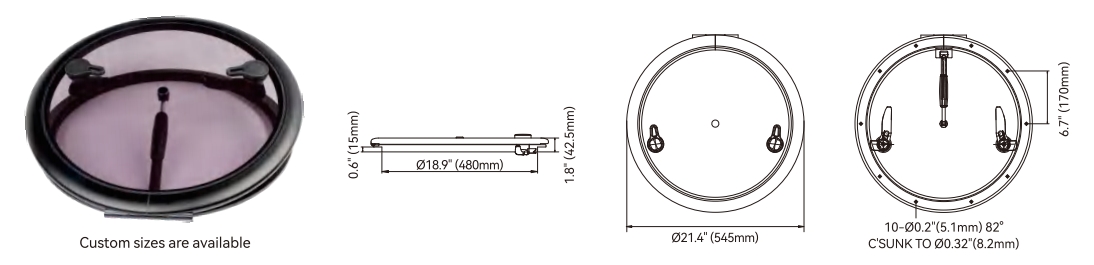

SFDH2-545-02

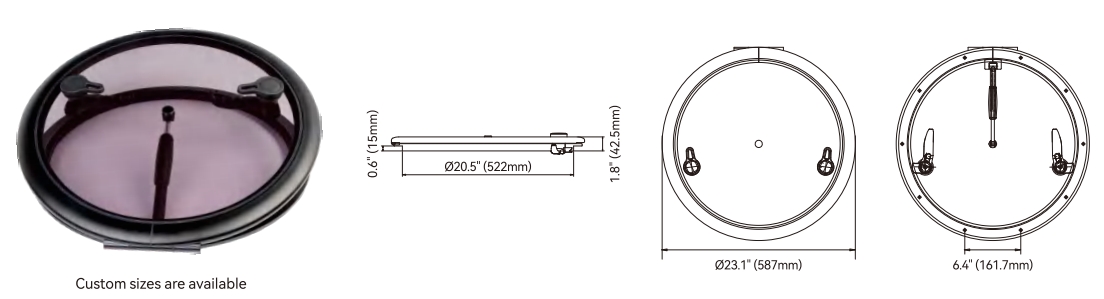

SFDH2-587-02
