Providing efficient wiping solutions for every vessel.

Reliable and durable wiper solutions for all marine environments.

FEATURES & BENEFITS

Factory preset to left parking position with a sweep angle of 90°

MORE FEATURES & BENEFITS

· 5 Nm torque

·  Adjustable sweep angles: 90°, 110°

·  Adjustable self-parking to the right or left position

·  Stainless steel driveshaft and durable metal housing

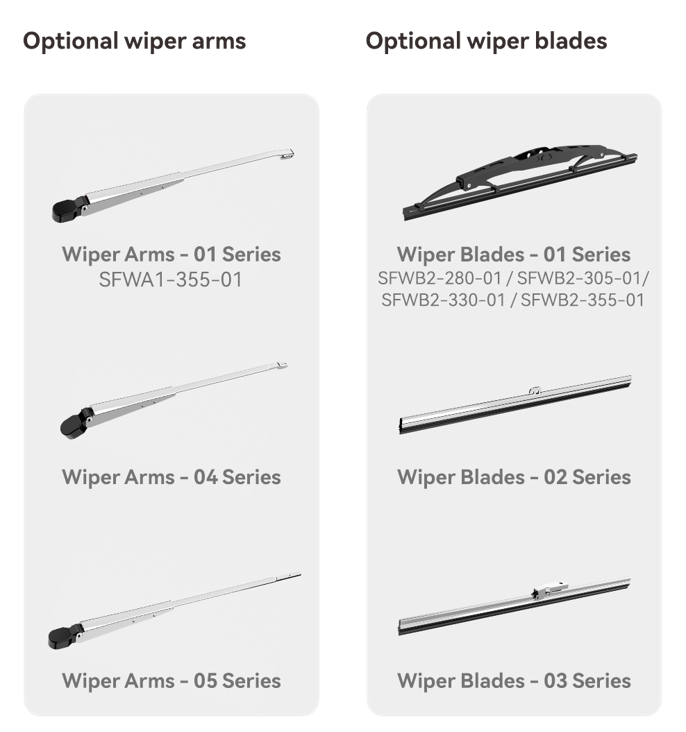

·  Supports multiple wiper arm and blade combinations

·  Powers arm/blade combinations up to 380 mm / 405 mm

Wiring Options (See Figure):

· 2 wire system without selfpark

· 3 wire system with selfpark

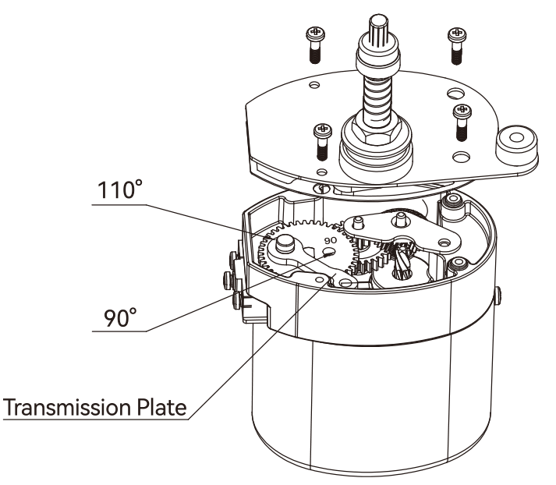

Changing the Wiping Angle:

1. Remove the four screws located at the bottom of the motor.

2. Move the transmission plate to the hole corresponding to the desired angle (90° or 110°).

3. Reinstall the screws and tighten them securely.

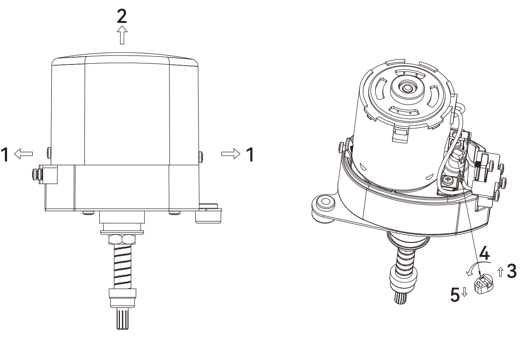

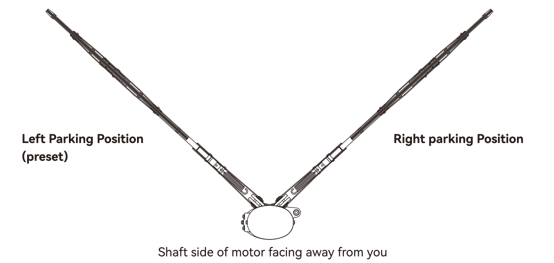

Changing Parking Position:

1. Remove the screws from both sides of the motor.

2. Remove the motor cover.

3. Detach the angle plate assembly.

4. Rotate the angle plate assembly by 180 degrees.

5. Reinstall the angle plate assembly.

6. Reattach the motor cover and tighten the screws on both sides.

STANDARD CONFIGURATIONS

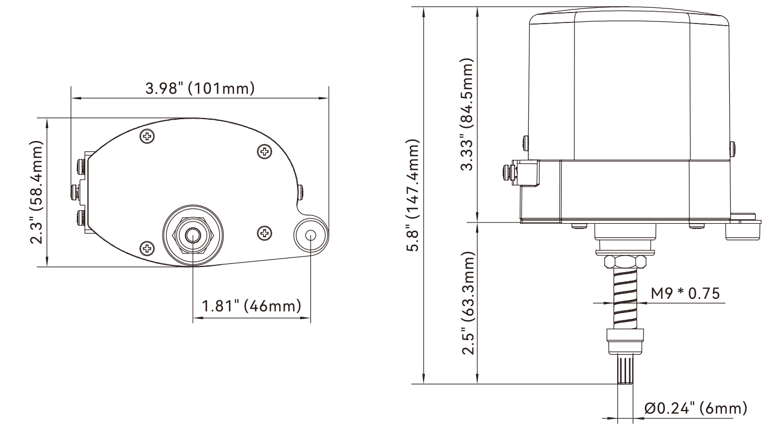

Dimension

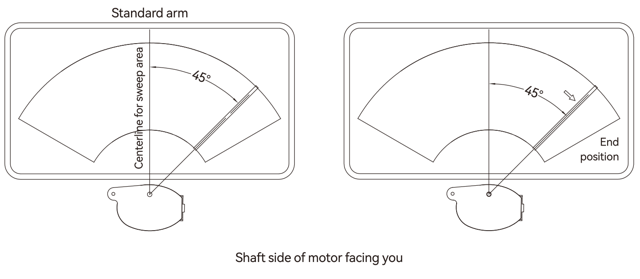

Installation Diagram
